In the context of a microcontroller, a PWM (Pulse-Width Modulation) signal is a square-wave signal where the frequency is fixed and the duty cycle is modulated. Since the average value of the signal is directly proportional to the duty cycle, this is a simple way to modulate the amount of power that goes into a peripheral, and it therefore widely used in applications such as motor speed control and LED dimming.
PWM signals can be generated using a GPIO controlled manually and timing functions, but this would be neither efficient nor reliable because the processor would spend most of its time waiting for the correct time to toggle the GPIO. Instead, a TC counter can be configured to control a pin and toggle it whenever its current value reaches a specified value, resulting in a configurable PWM signal entirely generated in hardware without the need of the processor, which can even be put into sleep mode if necessary. See the paragraph about PWM Mode
in the TC
module documentation for more information.
In order to generate a PWM signal, start by calling TC::enablePWM()
with the counter channel you want to use and the characteristics of the signal (period and high time) :
TC::enablePWM(TC::TC0_0A, 20000, 5000);
The output pin may be specified by calling TC::setPin()
before enablePWM()
(see Pin muxing for more details). The configuration can then be changed at any time by using the PWM-related functions, such as TC::setPeriod()
or TC::setDutyCycle()
.

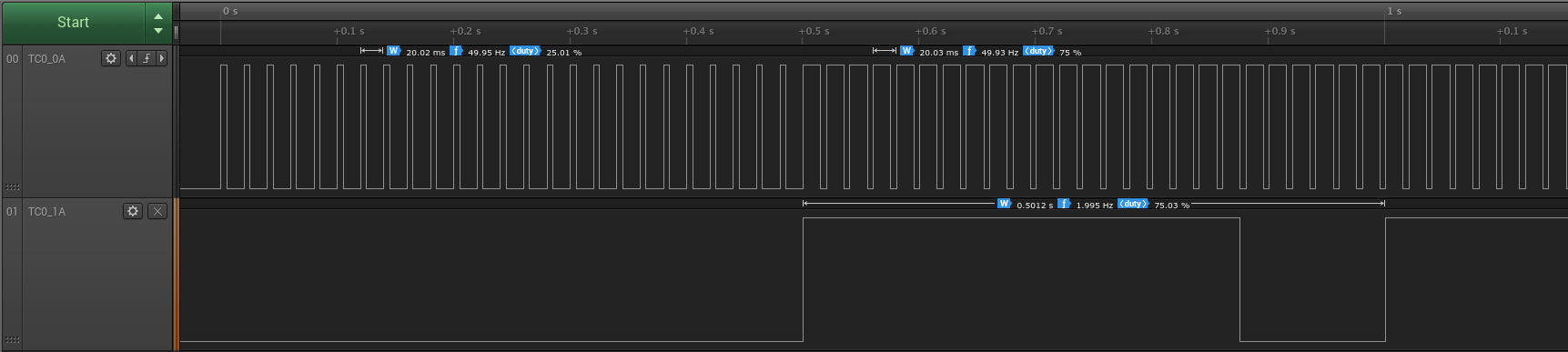

Below is an example that illustrates how multiple channels can be configured and used independently :
tc_generate_pwm.cpp
[download]wget http://libtungsten.io/static/code/examples/tc_generate_pwm/tc_generate_pwm.cpp
#include <carbide.h> #include <core.h> #include <tc.h> int main() { // Init the microcontroller Carbide::init(); // Start a PWM output on the channel TC0_0A, which is pin PB07 by default, // with a 20ms period and a 5ms high-time (25% duty cycle) TC::Channel channel1 = TC::TC0_0A; TC::enablePWM(channel1, 20000, 5000); // Start another PWM output on the channel TC0_1A and on pin PA10, // with a 500ms period and output disabled TC::Channel channel2 = TC::TC0_1A; const GPIO::Pin PIN_CHANNEL_2 = {GPIO::Port::A, 10, GPIO::Periph::B}; TC::setPin(channel2, TC::PinFunction::OUT, PIN_CHANNEL_2); TC::enablePWM(channel2, 500000, 0, false, TC::SourceClock::PBA_OVER_128); // Wait for half a second // Note : the PWM will still be generated while the CPU sleeps Core::sleep(500); // Change the period on the first channel to 10ms // The high-time will not change, the duty cycle will therefore // be 50% TC::setDutyCycle(channel1, 75); // Enable the output of the second channel with a duty cycle of 75% TC::setDutyCycle(channel2, 75); TC::enableOutput(channel2); while (true) { // Do something else... } }
Makefile
[download]wget http://libtungsten.io/static/code/examples/tc_generate_pwm/Makefile
## libtungsten project compilation config # Remember to do 'make clean' whenever you change anything in this Makefile NAME=tc_generate_pwm CARBIDE=true BOOTLOADER=true # Available modules : adc dac eic gloc i2c spi tc trng usart # Some modules such as gpio and flash are already compiled by default # and must not be added here. MODULES=tc # Path to the toolchain. If the tools (such as arm-none-eabi-g++) are # not in your default $PATH, you MUST define their location here. # (don't forget the trailing slash) TOOLCHAIN_PATH=/home/foaly/Software/gcc-arm-none-eabi/bin/ # Include the main lib makefile include libtungsten/Makefile
